House Number M/LED Backlight
House Number M/LED Backlight
Tall 0–9 og bokstavene A–H. Opptil 6 tegn.
Gratis frakt i Norge over 599 kr. Mengderabatten trekkes automatisk i kassen.
- Leveres ferdig montert med 5 m ledning
- Sendes innen 1–3 virkedager med sporing
- 2 års garanti
- Monteringsanvisning og skruer følger med
Couldn't load pickup availability
Uoriginalt tilbehør designet og produsert av Nordli 3D Solutions. Merke- og modellnavn brukes kun for å vise hva produktet passer til. Varemerkene tilhører sine respektive eiere, og N3DS er ikke tilknyttet eller godkjent av dem.

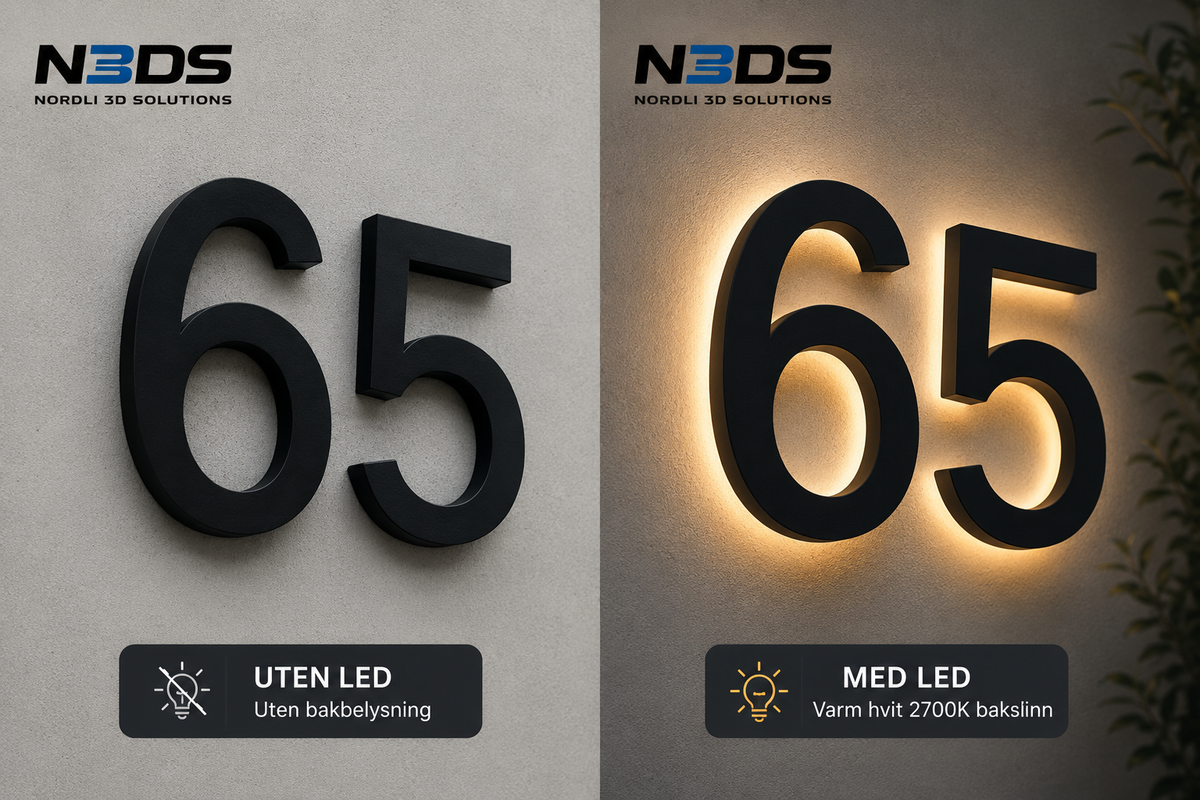

Large, illuminated house numbers that light up the wall behind them. In the evening, the numbers are surrounded by an even, warm glow, making them easy to see from a distance.
In short
- Characters: Numbers 0–9 and letters A–H (for example 12B). The letters are the same height as the numbers.
- Font: Teko Bold (bold and modern) or Arial Slim (classic and simple)
- Size: 33 cm or 25 cm high
- Front: Black or white
- Back: Glossy back that provides a beautiful, even 3000K LED light. Snaps on and locks. (Applies to the LED option.)
- Mounting: 23 mm from the wall. Two spacer tubes and a support foot provide three points of support, so the number stands securely (the number 1 has two).
- Fastening: Screwed in through the front. The screws are hidden by covers that snap into place.
- Cable: Exits the back of the number, so it can either be run externally or placed inside the cladding for concealed wiring. Additional cable exit hole for connecting multiple numbers in a row. Cable is 3 metres long.
- Light: 12 V with a transformer in the plug (a separate driver can be connected by removing the plug if the customer prefers this themselves)
Dimensions – Teko Bold (height × width)
| Character | 33 cm | 25 cm |
|---|---|---|
| 1 | 33 × 14 cm | 25 × 10 cm |
| 2 | 33 × 21 cm | 25 × 16 cm |
| 3 | 33 × 21 cm | 25 × 16 cm |
| 4 | 33 × 26 cm | 25 × 19 cm |
| 5 | 33 × 22 cm | 25 × 17 cm |
| 6 | 33 × 22 cm | 25 × 17 cm |
| 7 | 33 × 21 cm | 25 × 16 cm |
| 8 | 33 × 22 cm | 25 × 17 cm |
| 9 | 33 × 22 cm | 25 × 17 cm |
| 0 | 33 × 22 cm | 25 × 17 cm |
| A | 33 × 28 cm | 25 × 21 cm |
| B | 33 × 23 cm | 25 × 17 cm |
| C | 33 × 22 cm | 25 × 17 cm |
| D | 33 × 23 cm | 25 × 17 cm |
| E | 33 × 20 cm | 25 × 15 cm |
| F | 33 × 20 cm | 25 × 15 cm |
| G | 33 × 22 cm | 25 × 17 cm |
| H | 33 × 24 cm | 25 × 18 cm |
Dimensions – Arial Slim (height × width)
| Character | 33 cm | 25 cm |
|---|---|---|
| 1 | 32 × 20 cm | 24 × 15 cm |
| 2 | 32 × 21 cm | 25 × 16 cm |
| 3 | 33 × 22 cm | 25 × 17 cm |
| 4 | 32 × 24 cm | 24 × 18 cm |
| 5 | 32 × 22 cm | 25 × 17 cm |
| 6 | 33 × 22 cm | 25 × 16 cm |
| 7 | 32 × 21 cm | 24 × 16 cm |
| 8 | 33 × 22 cm | 25 × 17 cm |
| 9 | 33 × 22 cm | 25 × 16 cm |
| 0 | 33 × 22 cm | 25 × 17 cm |
| A | 32 × 31 cm | 24 × 23 cm |
| B | 32 × 25 cm | 24 × 19 cm |
| C | 33 × 30 cm | 25 × 22 cm |
| D | 32 × 28 cm | 24 × 21 cm |
| E | 32 × 25 cm | 24 × 19 cm |
| F | 32 × 23 cm | 24 × 17 cm |
| G | 33 × 30 cm | 25 × 23 cm |
| H | 32 × 26 cm | 24 × 20 cm |
In Arial Slim, the round numbers (0, 3, 6, 8, 9) and the letters C and G are slightly taller than the flat ones, as is standard for this typeface.
Depth: 2.5 cm, plus 2.3 cm from the wall (4.8 cm total).
Options
- With LED and driver: Ready to mount, simply connect to power. Supplied with a glossy back.
- Without LED: Only the number, without LED or back. Supplied with snap-on covers, spacer tubes and a support foot, so the number stands as far from the wall and as securely as with LED.
The price is per character. Choose the size, colour and font, and number or letter, and add one character to the cart for each number or letter you need.
Mounting instructions and screws are included.
